Dimensions
Exterior, wall-to-wall, overall, opening and room dimension workflows with coordinated stacking logic.
AEC DOCUMENTATION AUTOMATION · 14-DAY FREE TRIAL
You model it.
We document it.
Turn coordinated Revit models into a complete architectural documentation set with fewer repetitive steps — plans, dimensions, sections, elevations, openings, schedules, legends and sheets working together.
WORKFLOWComplete architectural documentation
PLATFORMWindows 64-bit
PUBLISHERCLICKDRAFT LTD
01Native workflowRuns directly inside Revit
02Deterministic outputRepeatable documentation logic
03Signed releasePublished by CLICKDRAFT LTD
04No usage creditsDocument without counting commands
01 / PRODUCT
Documentation starts where modelling ends.
ClickDraft is the documentation layer for architectural Revit workflows — turning model geometry and project data into coordinated plans, sections, elevations, annotations, schedules and sheets.
SOURCE MODEL / TYPICAL FLOOR
01Read modelWalls, openings, rooms, levels and geometry
02Apply rulesDocumentation logic and project standards
03GenerateCoordinated drawing information
CLICKDRAFTDOCUMENTATION ENGINE
02 / CAPABILITIES
One production layer for architectural documentation.
Core automation stays core. Plans scale by licence structure, not by locking essential documentation tools away.
Openings
Door, window and curtain-wall tagging, schedules, legends and presentation workflows.
Sections & elevations
Prepare and enhance architectural views with repeatable documentation logic and technical graphics.
Technical documentation
Roof, strip foundations, ground slabs and specification-note workflows integrated into the drawing set.
Schedules & legends
Turn model information into structured, presentation-ready documentation without rebuilding it manually.
Sheeting
Bring views and documentation into coordinated sheet workflows ready for review, issue and plotting.
03 / WORKFLOW
Model → rules → documentation.
Keep the model at the centre. ClickDraft handles repetitive production work around it.
01
Start with the model
Use the coordinated project your team already owns. No separate authoring environment.
02
CLICKDRAFTAPPLY DOCUMENTATION LOGIC
Switch on documentation
Run focused commands or One Click to automate recurring drawing-production tasks.
03
Review coordinated output
Check, coordinate and issue drawing information with professional review still in your hands.
04 / OUTPUTS
Drawings that still look like architecture.
ClickDraft is designed around the graphic hierarchy of real architectural documentation — walls remain dominant, secondary information stays quiet, and output remains ready for professional review.
CD-SEC / 01

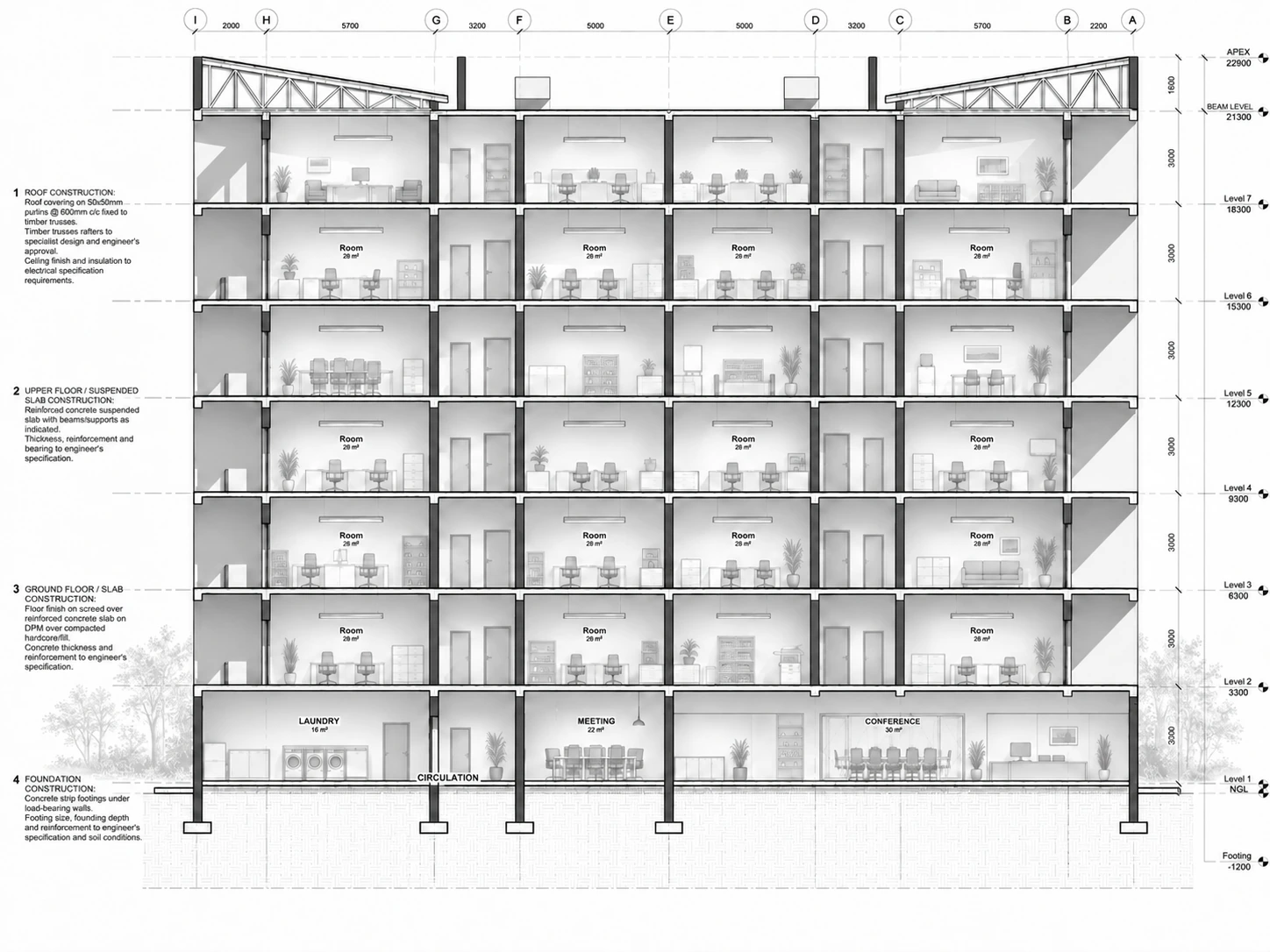

Architectural section
Coordinated levels, cut geometry, technical notes, interiors and restrained contextual graphics.
- TYPE
- Building section
- WORKFLOW
- Section enhancement
- STYLE
- Architectural / halftone
CD-EL / 02ELEVATION

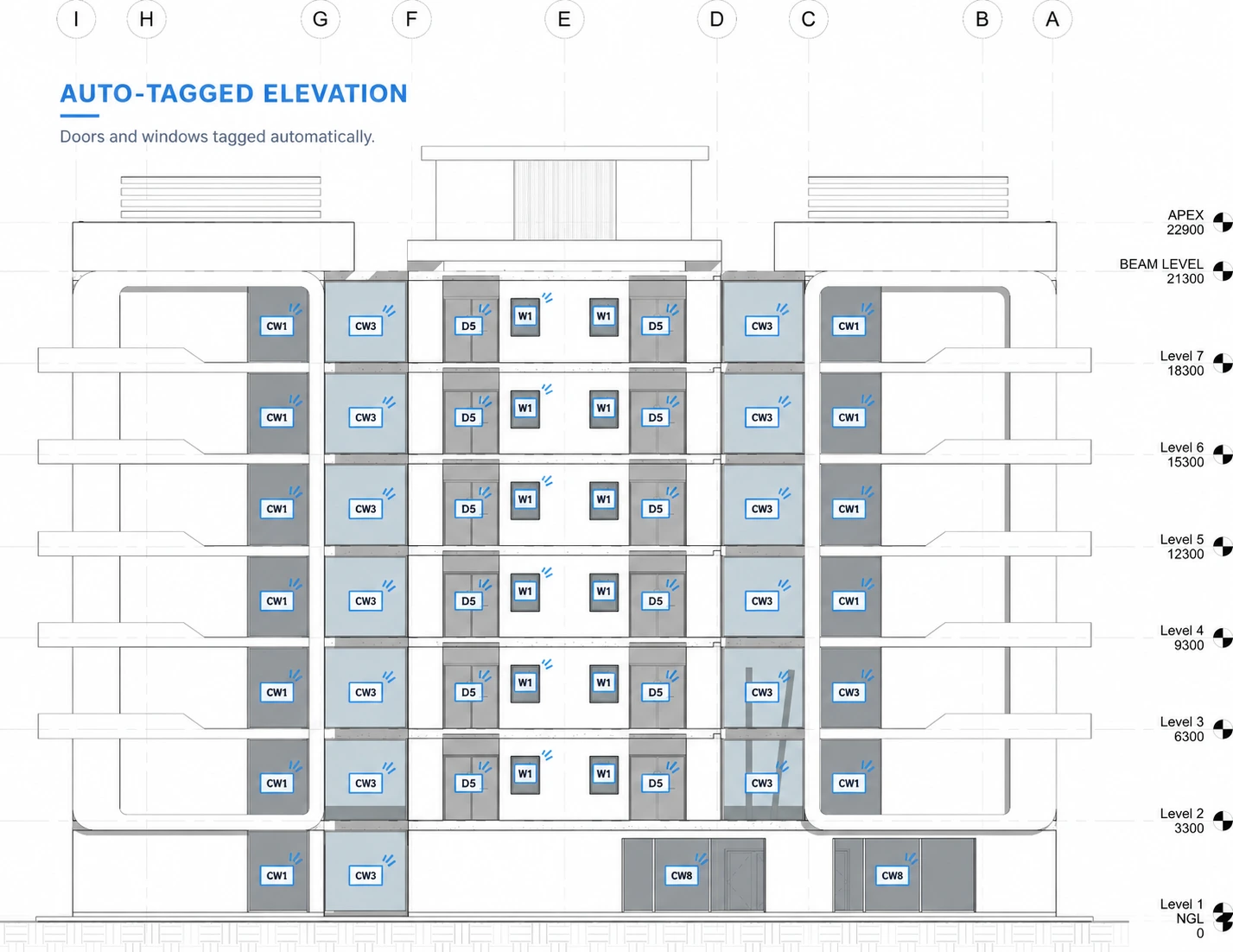

Auto-tagged elevation
Doors and windows are tagged automatically while the elevation remains clean, coordinated and presentation-ready.
CD-FP / 03FLOOR PLAN

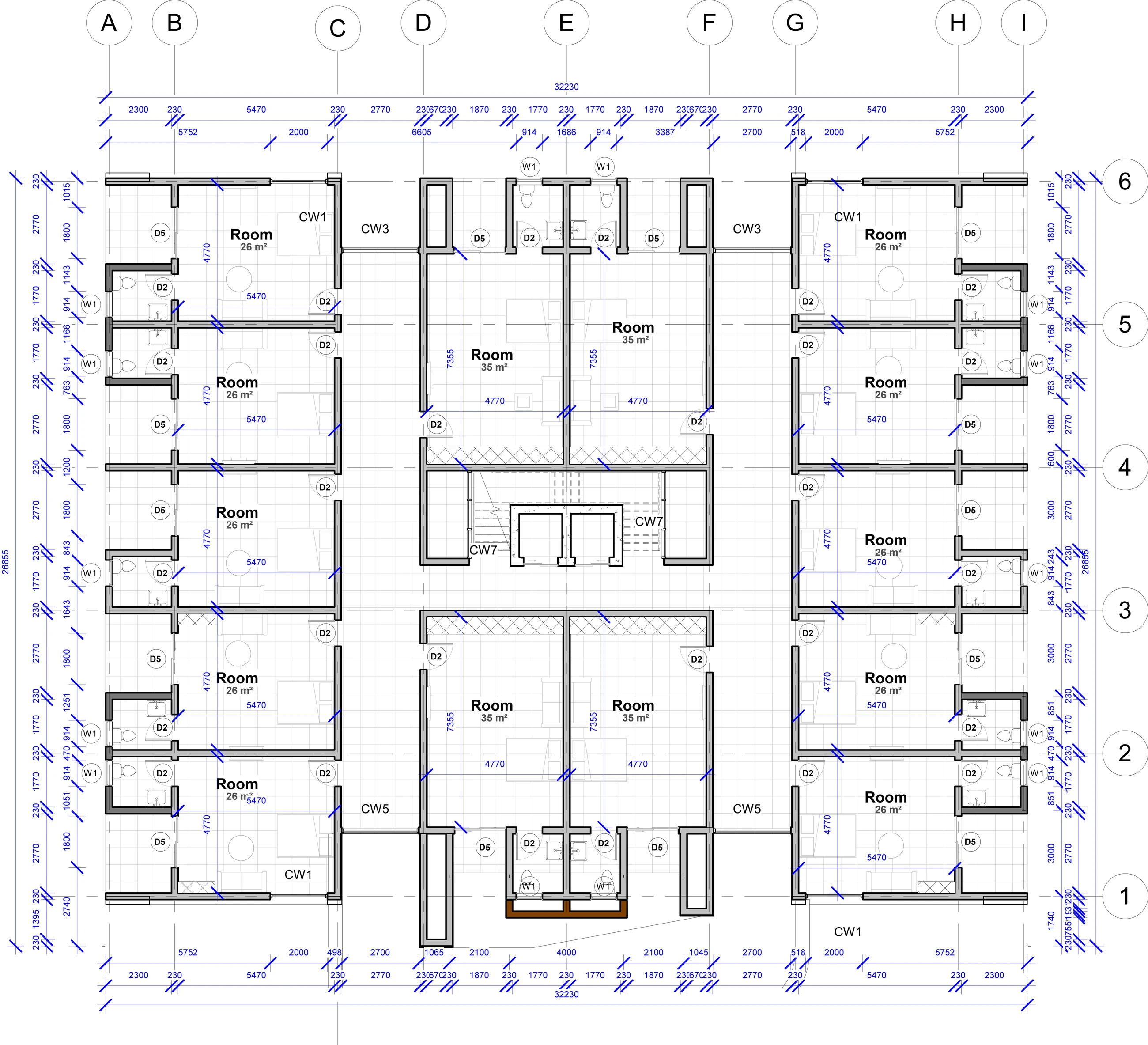

Coordinated plan
Rooms, openings, tags and architectural geometry kept readable.
CD-DIM / 04AUTO DIMENSIONS
Automatic dimensions
Opening, wall-to-wall and overall strings arranged around the floor plan.
05 / DOCUMENTATION SERVICE
Need the drawings done for you?
ClickDraft is also available as a documentation service for teams that would rather hand off the production work — including complex or atypical models that need closer architectural judgement.
CD / PROFESSIONAL SERVICES
Send the model. Define the deliverables. We document the project.
Suitable for practices facing deadline pressure, project overflow, unusual model conditions, or teams that simply prefer a done-for-you documentation workflow. Every enquiry is reviewed against scope before a custom quotation is prepared.
Project information is handled under our Privacy Notice. Where ClickDraft processes personal data in a customer's project on that customer's instructions, our Data Processing Addendum can be incorporated into the project order.
Complex modelsProjects that need more architectural judgement than a standard automated pass.
Overflow & deadlinesAdditional documentation capacity when your internal team is already stretched.
Done-for-you productionFor clients who want coordinated drawing information without operating the plugin themselves.
Custom project scopeDeliverables and fee are agreed from the actual model, documentation requirements and programme.
06 / LAUNCH FILM
See the documentation workflow in action.

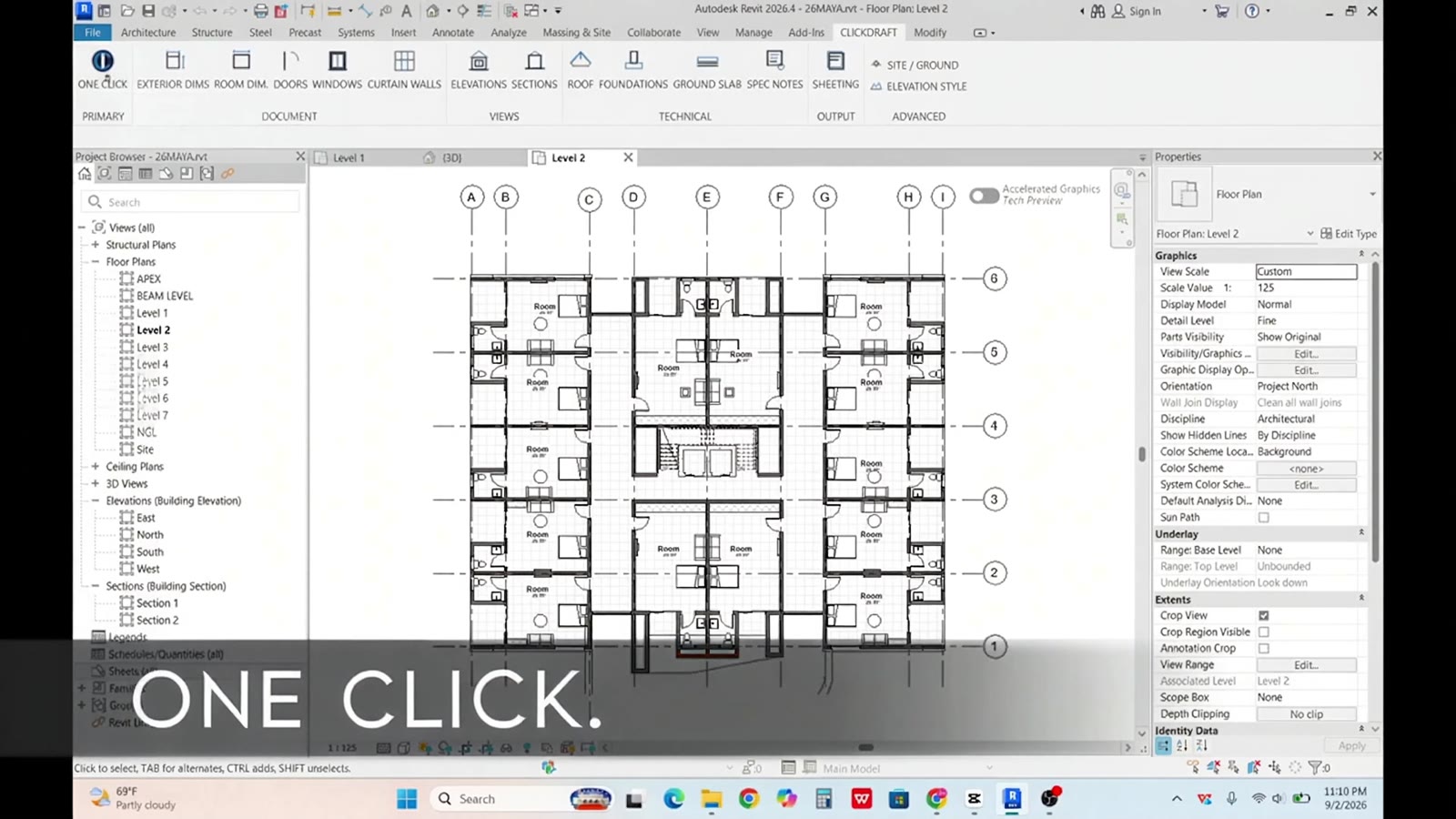

A concise look at ClickDraft in action — authentic Revit footage, real documentation output, and the workflow from model to coordinated drawings.
MODEL→DIMENSIONS→VIEWS→SCHEDULES→SHEETS→ISSUE
Need a deeper look? Watch the full product walkthrough ↗
07 / PRICING
Professional automation. Straightforward licensing.
Choose the licence structure that fits how you work. Core documentation automation is included across paid plans.
SOLO
For individual professionals.
$39/ month
or $390/year · two months free
- 1 named user
- Use on up to 2 computers
- Full core documentation automation
- Dimensions, sections & elevations
- Schedules, legends & sheets
- Product updates
- Standard support
FOR TEAMS
STUDIO
For architecture and BIM teams.
$149/ month
or $1,490/year · two months free
- Up to 5 named users
- Up to 2 computers per named user
- Everything in Solo
- Team licence management
- Shared standards & presets as released
- Priority support
- Built for growing practices
Need more than 5 named users? Contact ClickDraft for volume licensing.
Before continuing to checkout, you will be asked to agree to the ClickDraft Terms of Service and acknowledge the Privacy Notice and Refund & Cancellation Policy.
08 / DOWNLOAD
Try ClickDraft free for 14 days.
Download ClickDraft and explore the documentation workflow before you subscribe. The installer is signed and published by CLICKDRAFT LTD.
14-day free trial · Windows installer · No subscription is required to download and try ClickDraft.
PUBLIC RELEASE1.0.0
- PLATFORM
- Autodesk Revit on Windows
- PLATFORM
- Windows 64-bit
- INSTALLER
- 11.9 MB
- PUBLISHER
- CLICKDRAFT LTD
- SIGNATURE
- Authenticode valid
SHA-256
685CDF3E7C220FF1659165B464F1302EBFD11D8BF145330B2202399EF6B9B28DFIRST-TIME WINDOWS INSTALL
Installing ClickDraft on Windows
If Windows displays a SmartScreen message, ClickDraft has not necessarily failed to install. Click More info, confirm the verified publisher is CLICKDRAFT LTD, then click Run anyway.

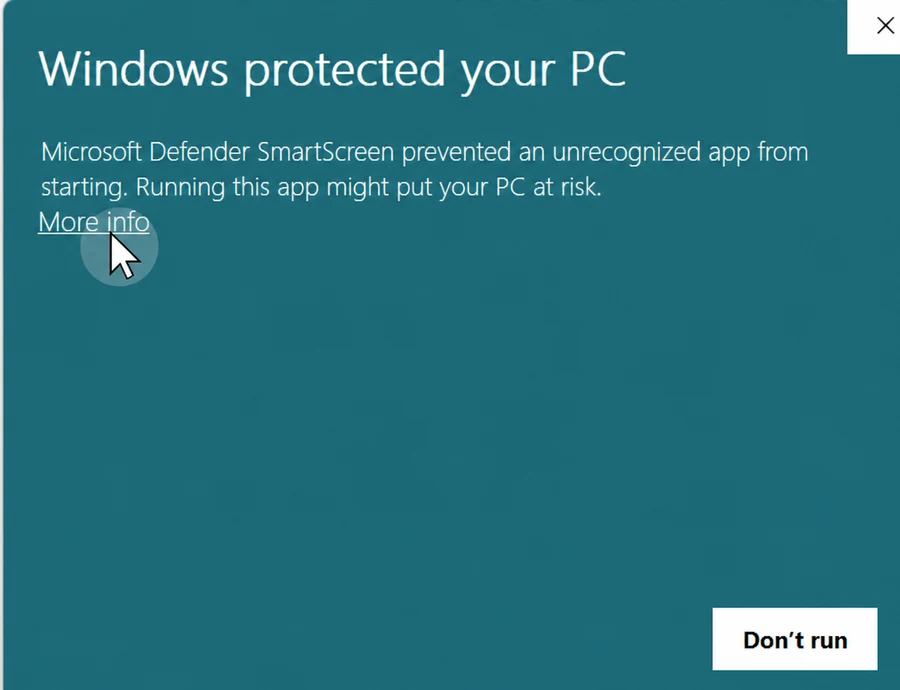

Click “More info”
Expand the warning so Windows shows the signed publisher details.

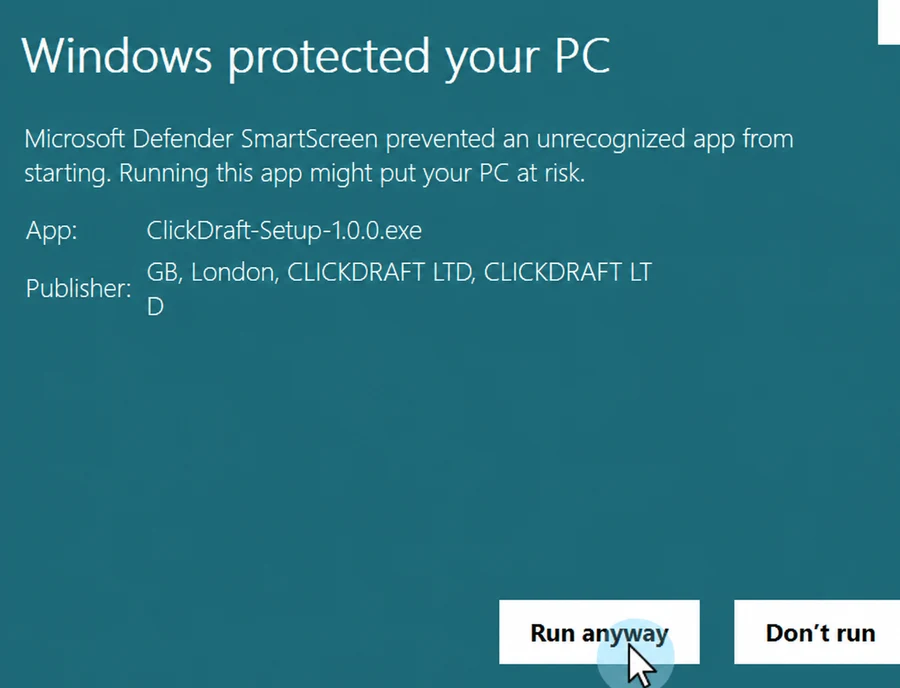

Click “Run anyway”
Proceed only after confirming the publisher is ClickDraft Ltd.
